Minipleat panel, 25mm deep, galvanised steel frame
592 × 592 × 25 mm
UP91-5959-25
In stock~27 available
| Quantity | Discount | Unit price |
|---|---|---|
| 1–4 | – | £ |
| 5–9 | −5% | £ |
| 10–24 | −8% | £ |
| 25+ | −15% | £ |
High efficiency: the hydrophobic glass-fibre media removes fine particulates effectively, suiting environments that need clean air.
Low pressure drop: the minipleat design and quality media allow high airflow with minimal resistance, reducing energy consumption.
Long filter life: ultra-compact construction and high dust-holding capacity extend service intervals. Optional seals and grills suit various mounting requirements.
| Filter class (ISO 16890) | ePM1 > 80% |
|---|---|
| Grade (EN779:2012) | F9 |
| Filter efficiency PM1 | 80% |
| Filter efficiency PM2.5 | 80% |
| Fire rating | DIN53438-3 F1 / F1 / K1 |
| Max continuous operating temp. | 80°C |
| Final recommended pressure drop | 3 × initial PD, or +100Pa (EN13053:2019) |
Rated airflow, initial pressure drop and energy rating are size-dependent, see the Standard sizes table below.
We make non-standard panel filters to your exact dimensions and grade, dispatched from the UK. Send us your sizes and we'll price it.
Request a custom size →Hi-fi tech-port of pdp.html. Resolved through @theme tokens (Tailwind v4 in-browser build + token guard), with the hi-fi header fork coming from site-header.js via the hifi filename.
Trust band is the shared .trust-strip component from index-hifi.html (same stroke icons + Eurovent tooltip), not a PDP-only variant.
Standard sizes = the PLP product grid, scoped to one series. Same .spec-table component and CSS as plp-hifi.html: zebra rows, soft-blue hover, selection tint, sortable headers with the ink accent bar, pinned Product + Buy columns, the RS-style draggable scrollbar (specScroll()), real thumbnails and the mobile show-specs toggle. Differences from the PLP: no facet filters, rows are size variants of one product (the name link does not navigate), header/pockets/pressure/net-weight are a dash on a panel, and Capacity = rated airflow.

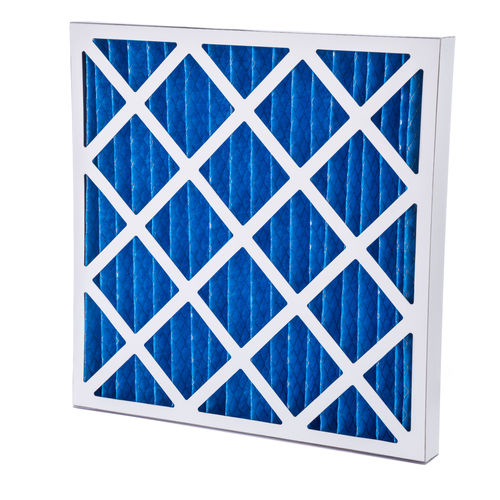

New hi-fi pieces (review-first gate). .pdp-cta custom-size banner mirrors the .ff-guide block on filter-finder-hifi.html. Accordions animated with @alpinejs/collapse, description open by default. Hero image is a placeholder (placeholder-panel-filter-image.jpg) with an export note overlay.
